The AeroTech Disposable Motor System DMS is a single-use motor in kit form that is assembled by the user. All of the Aerotech DMS motors use all-disposable components. The nozzle and propellant are already installed.
The H14ST-P is a Plugged/Smoke motor. Plugged reload kits do not utilize a motor-actuated ejection charge. Plugged motors must be used in conjunction with a timer, altimeter or radio-activated recovery system. The motor case includes the thrust ring.
Secure Payments
We use Mollie for secure payments !
DMS motors feature a filament-wound fiberglass casing, a glass-reinforced composite phenolic nozzle, a molded plastic bulkhead and RCSs exclusive Super Thunder™ aerospace grade composite propellant formulation, which produces a bright violet-blue flame with a minimum of exhaust smoke. Super Thunder™ motors provide a higher ISP than Blue Thunder™.
This AeroTech motor pack comes with 1 rocket motor and 1 FirstFire™ Initiator. Requires HAZMAT shipping via UPS or FEDEX. The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 1 High-Power certification through NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) and proof of Level 1 certification is received.
Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

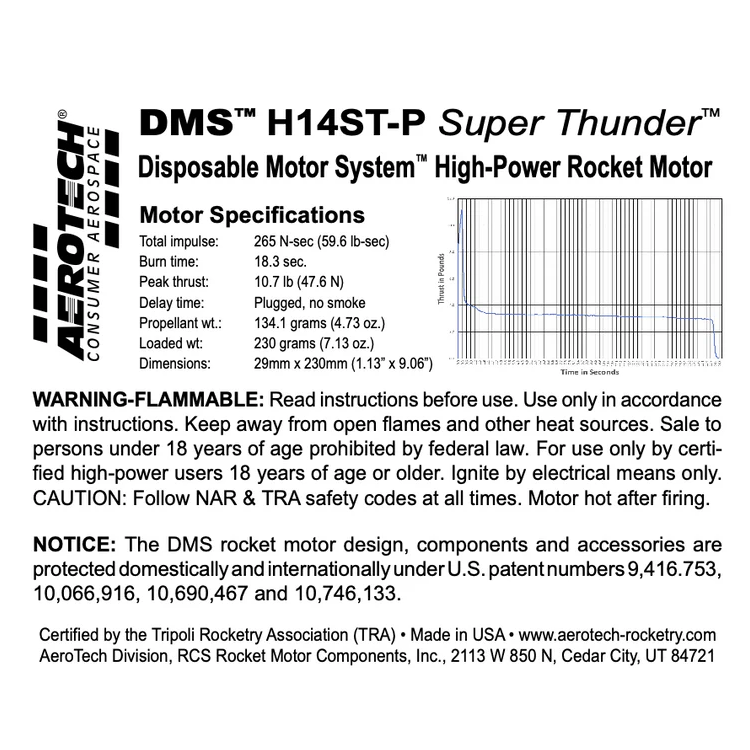

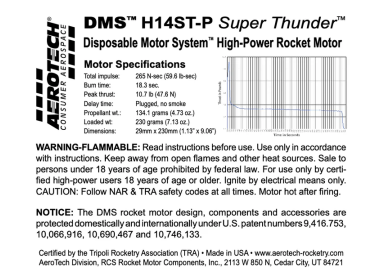

Motor Diameter: 1.13 inches (29mm)
Casing Length: 9.06 inches (230mm)
Total Impulse: 240.12 N-sec
Burn Time: 18.3 seconds
Peak Thrust: 42.13 N-sec
Delay Time: Plugged
Propellant Weight: 134 grams
Loaded Weight: 230 grams
Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
