G75M-13A DMS 1-Motor Kit - 077513
G75M-13A DMS 1-Motor Kit - 077513

DMS G75M-13A

€54.95
Tax included
Quantity

0 review(s)
Only 5 item(s) left in Stock!
DMS G75M-13A
The AeroTech Disposable Motor System DMS is a single-use motor in kit form that is assembled by the user. All of the Aerotech DMS motors use all-disposable components. The nozzle and propellant are already installed. You will need to set the desired delay time using the Universal Delay Drilling Tool (UDDT), Not Included, and then pour in the ejection charge. The Universal Delay Drilling Tool (UDDT) is required to adjust to a shorter time delay on all DMS rocket motors and is available in the AeroTech Accessories section of this website.

Secure Payments

We use Mollie for secure payments !

DMS motors feature a filament-wound fiberglass casing, a glass-reinforced composite phenolic nozzle, a molded plastic bulkhead and RCSs exclusive Metalstorm™ aerospace grade composite propellant formulation. Metalstorm™ is a sparky propellant, lights easily and produces a large brilliant white exhaust plume, a long yellow-orange dense spark trail, and plentiful white sparks that fan out in flight. As with all rocket motors using spark-generating propellants, special precautions must be taken to avoid fires around the launch pad by clearing the immediate area of all combustible materials in accordance with applicable fire and safety codes.
This AeroTech motor pack comes with 1 rocket motor and 1 FirstFire™ Initiator. Requires
Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

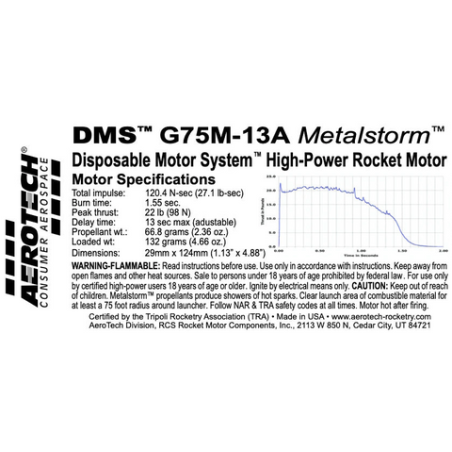

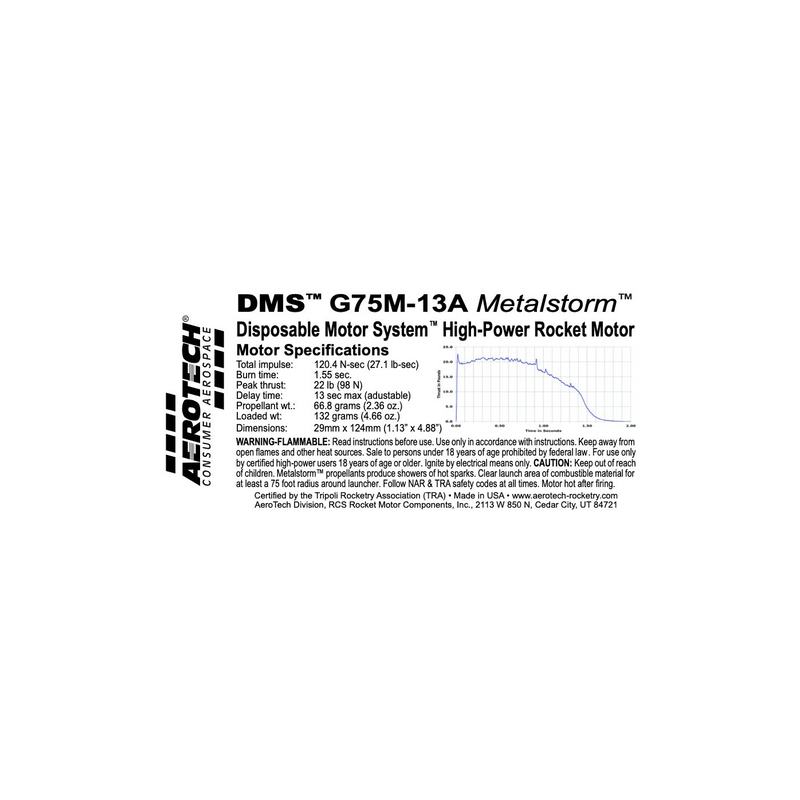

Specifications:
Motor Diameter: 1.125 inches (29mm)
Casing Length: 4.88 inches (124mm)
Total Impulse: 120.4 N-sec
Average Thrust: 74.7 newtons
Peak Thrust: 102 N-sec
Thrust Duration: 1.6 seconds
Delay Time: adjustable up to 13 seconds
Propellant Weight: 67 grams
Motor Weight: 131 grams
Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
ARO-077513
5 Items

Data sheet

PROPELLANT TYPE
METALSTORM
MOTORTYPE
DMS
SINGLE USE
MOTOR CLASS
G MOTORS
TOTAL IMPULSE
100 - 500 Ns
MOTOR DIAMETER
29MM
