DMS motors feature a filament-wound fiberglass casing, a glass-reinforced composite phenolic nozzle, a molded plastic bulkhead and RCSs exclusive Blue Thunder™ aerospace grade composite propellant formulation, which produces a gorgeous bright violet-blue flame with a minimum of exhaust smoke. Blue Thunder™ motors provide a higher level of thrust than White Lightning™ motors of the same total impulse and are perfect for high lift-off acceleration.
This AeroTech motor pack comes with 1 rocket motor and 1 FirstFire™ Jr. Initiator. The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) is received.
Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

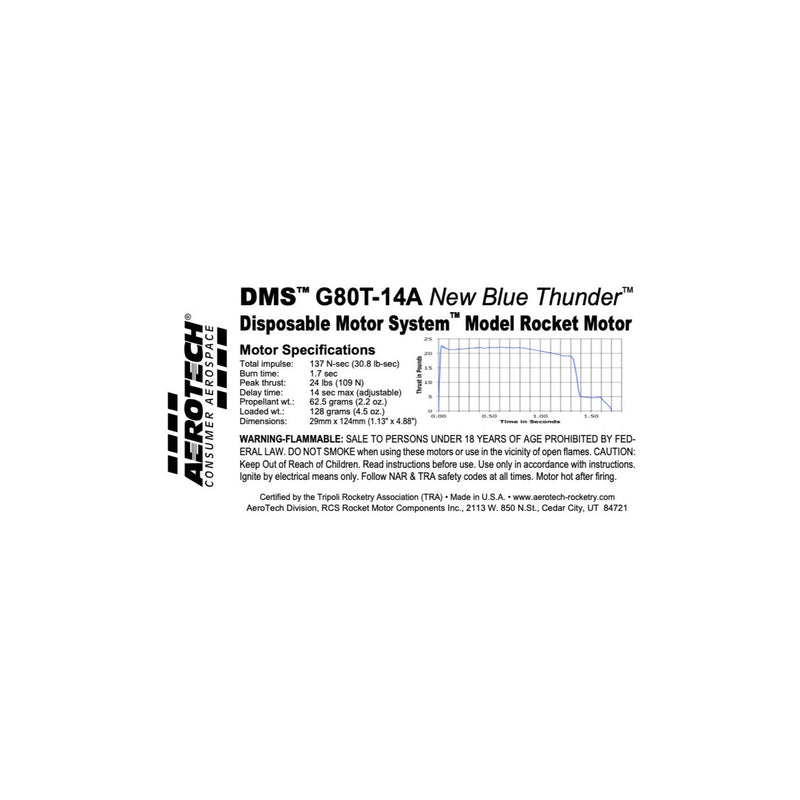

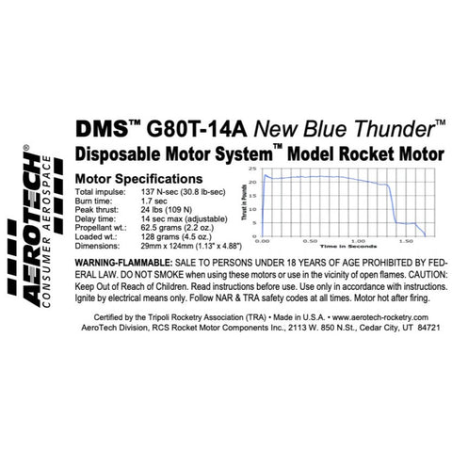

Specifications:
Motor Diameter: 1.125 inches (29mm)
Casing Length: 4.88 inches (124mm)
Total Impulse: 137 N-sec
Average Thrust: 80 newtons
Peak Thrust: 109 N-sec
Thrust Duration: 1.7 seconds
Delay Time: adjustable up to 14 seconds
Propellant Weight: 62.5 grams
Motor Weight: 128 grams
Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
Data sheet
- PROPELLANT TYPE
- BLUE THUNDER
- MOTORTYPE
- DMS
SINGLE USE
- MOTOR CLASS
- G MOTORS
- TOTAL IMPULSE
- 100 - 500 Ns
- MOTOR DIAMETER
- 29MM
The DMS Univeral Delay Drilling Tool™ (or UDDT) is designed for shortening DMS delay elements to adjust the time delay of an AeroTech DMS reloadable motor. The UDDT consists of a machined drill...
