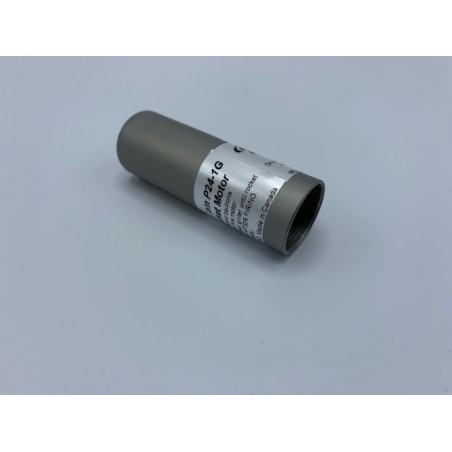

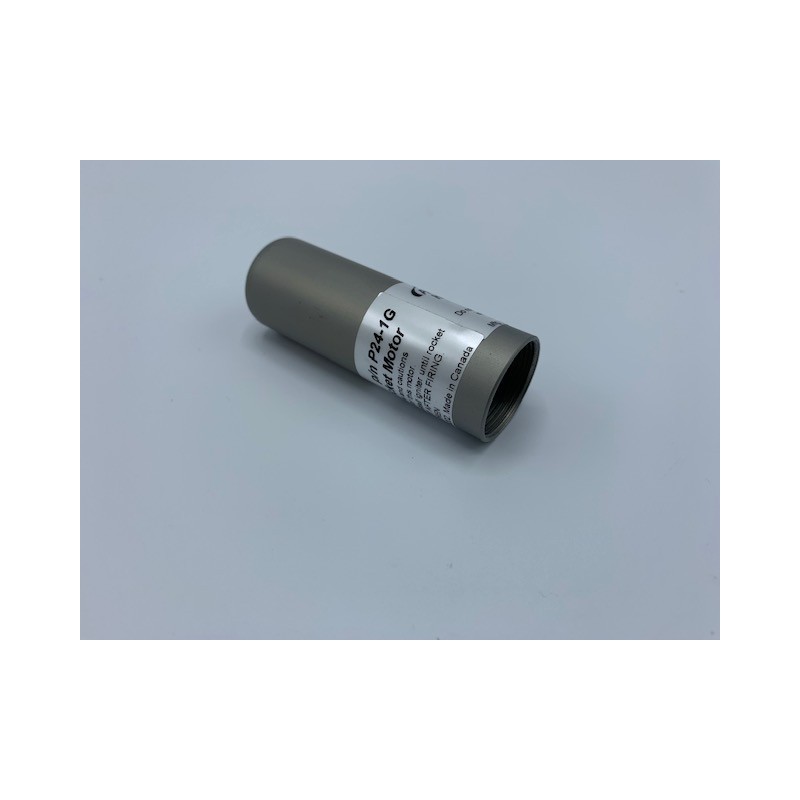

Pro24 1 Grain Casing

Pro24® rocket motor hardware is as simple as you can get. With the forward closure included in the reload kit, you only need your motor case of choice and one rear closure.

Manufactured from thin-wall 6061-T6 aluminum tubing with a clear anodized coating for corrosion protection, Pro24® motor cases are lightweight but strong, capable of holding well over 3000 psi of internal pressure. The forward closure is retained by a formed rim at the head end of the casing. The rear of the casing has precision-machined internal threads.

Pro24® motor casings will eventually be available in six sizes. Please refer to the motor specifications page to see which casing is required for each Pro24® reload. On this page you can download a handy drawing in Adobe Acrobat (pdf) format showing the key dimensions of each Pro24® motor (coming soon!).

Don't forget that you'll need a delay adjustment tool for your Pro24® reloads, unless you use electronic ejection exclusively. The ProDAT-38® tool allows you to choose from 5 preset delay times with every reload.

Please note that the ProDAT-38® will only work with Pro24®, Pro29® and Pro38® reloads and the ProDAT-54® will only work with Pro54® reloads. pro24® motor cases are not compatible with any other brand of reload.
