The I1299N-P is a Plugged motor reload. Plugged reload kits do not utilize a motor-actuated delay or ejection charge. Plugged motors must be used in conjunction with a timer, altimeter or radio-activated recovery system. This motor requires a Plugged Forward Closure.
This RMS motor reload utilizes RCSs exclusive Warp-9™ aerospace grade composite propellant formulation, which produces a prominent yellow-orange flame studded with “mach diamonds.” Warp-9 is AeroTech’s fastest burning propellant. Originally developed for Orbital’s Pegasus® fin motors, Warp-9 is perfect when you need the highest thrust possible from a given motor size.

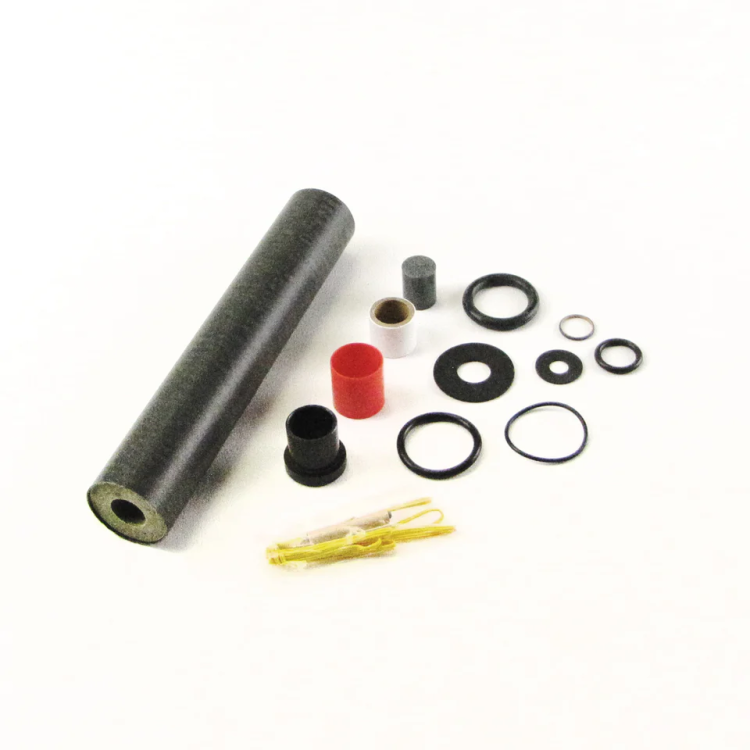

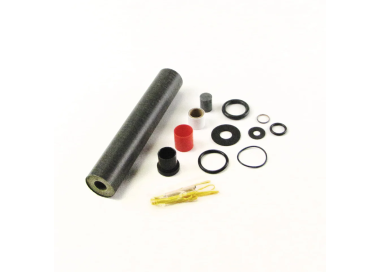

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators. Requires HAZMAT shipping via UPS or FEDEX. The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 1 High-Power certification through NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) and proof of Level 1 certification is received.
Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).
Specifications:
Motor Diameter: 1.5 inches (38mm)
Casing Length: 9.13 inches (232mm)
Hardware Required: RMS-38/480
Total Impulse: 423 N-sec
Average Thrust: 1335.0 newtons
Peak Thrust: 1851.4 N-sec
Thrust Duration: 0.3 seconds
Delay Time: Plugged
Propellant Weight: 192 grams
Motor Weight: 422 grams
Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
ARO-09129P
5 Items
Data sheet
PROPELLANT TYPE
WARP-9
MOTORTYPE
RMS
MOTOR CLASS
I MOTORS
TOTAL IMPULSE
100 - 500 Ns
HARDWARE NEEDED
RMS-38/480
